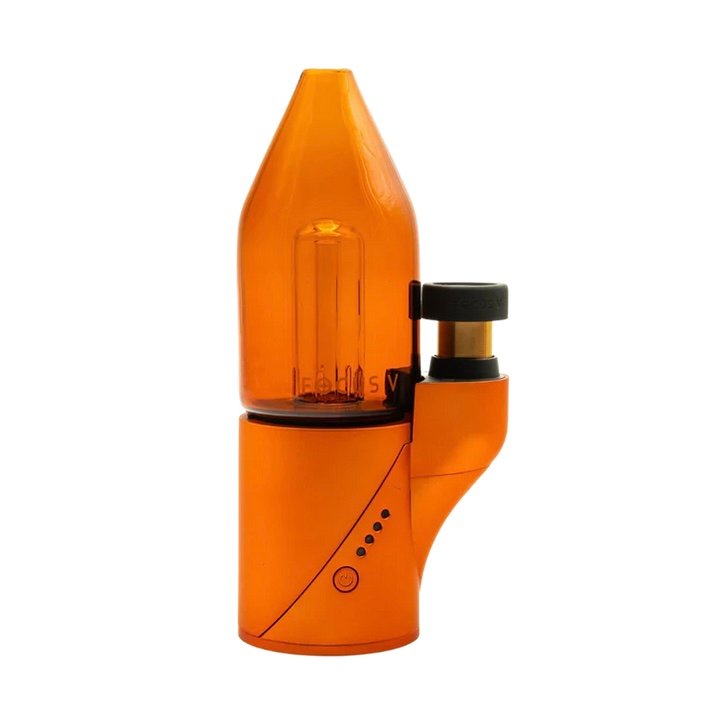

FOCUS V CARTA ELECTRONIC SMART RIG – HELIOS LIMITED EDITION:

Elevate Yourself to the Height of the Gods

Focus V CARTA has just gone from being the best electric dab rig on the planet to the e-rig of the gods. Welcome to the CARTA family: the Focus V Helios CARTA!

Named after the Greek god Helios who transported the sun across the sky in a chariot of gold, the limited-edition Helios CARTA is your personal golden chariot, delivering fire wherever you want to go. This sunkissed CARTA is brimming with fiery vitality, exuding from an orange veneer reminiscent of summer sunsets and citrus kisses that offer to take you across the sky and back on the highest path possible. Arriving like a ray of sunshine into the Focus V family of limited-edition CARTA e-rigs, the Helios is easily the warmest color we’ve ever offered, resplendent with a guiding radiance that lights up any sesh.

The Helios CARTA is a limited edition take on the Focus V CARTA which revolutionized portable dabbing, opening up new possibilities by incorporating replaceable battery power and taking portability to its logical conclusion. Previous models of portable dab rigs still rely heavily on electrical charging, whereas the Focus V CARTA can be charged through a USB like a standard portable rig or can rely on the power of two 18350 batteries. Want to venture to the middle of the Sahara Desert on foot with a continuously powered e-rig? The Focus V CARTA is the only one that can deliver!

As a smart rig, the Focus V CARTA offers Bluetooth capabilities essential for working with the CARTA App. This app unlocks the true CARTA experience, allowing you the ability to adjust your e-rig’s temperature right down to the precise degree. No matter whether you want to enjoy delicate coldwater hash or rugged terp diamonds, you can access the perfect temperature for the job using the app. Not only does the app deliver multiple temperature controls, but it also includes a remote control function and dab counter.

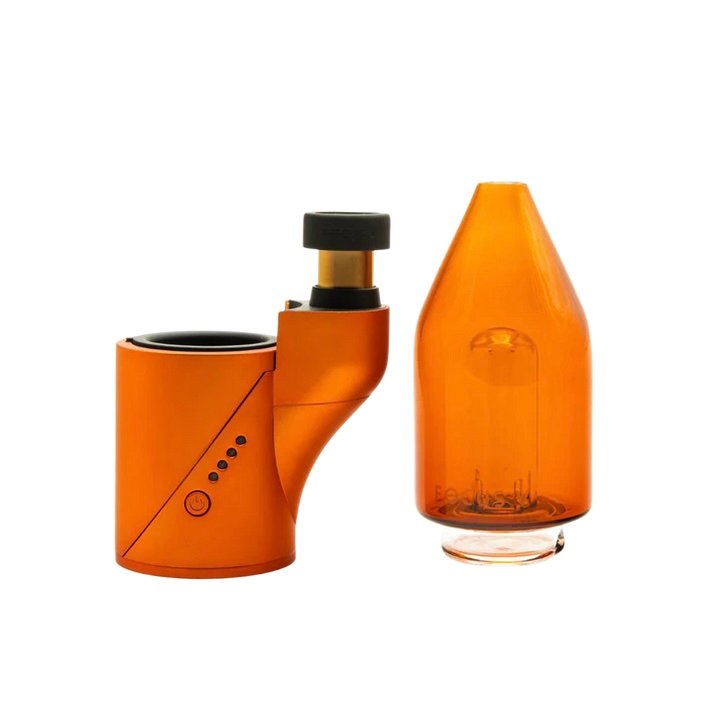

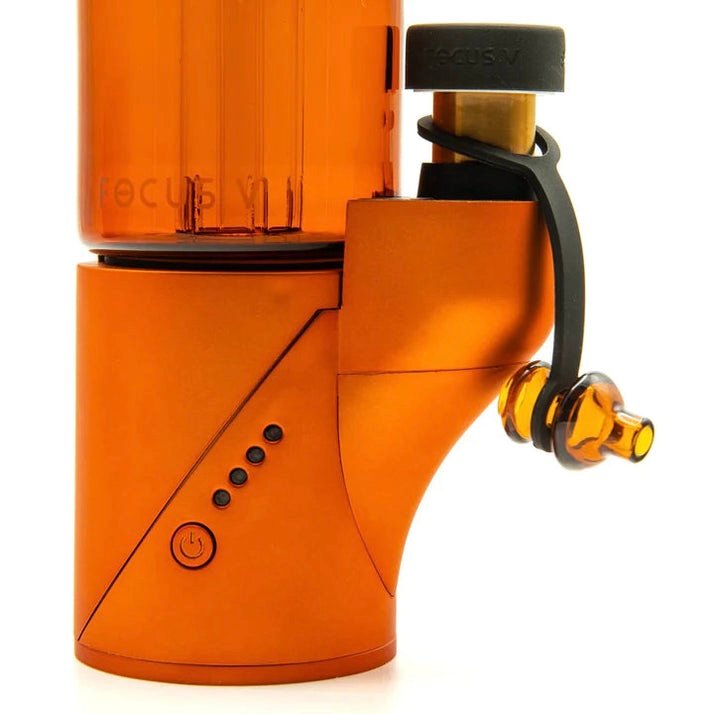

The ergonomic design of the Focus V CARTA includes a fully customizable removable glass top, making it even easier to pack up and hit the road. Rounded out by haptic feedback that keeps you aware of your e-rig’s status, CARTA from Focus V is the high point of portable dabbing.

Features:

• Focus V CARTA Everlast Atomizer
• Portable e-rig with desktop performance
• Comfortable, ergonomic design
• Uses rechargeable batteries for true portability
• Includes quartz and titanium atomizers
• 4 out-of-the-box temperature presets
• Temperature control to the single degree with the Focus V CARTA app
• Haptic feedback
• Dab counter and remote control available through the Focus V CARTA app

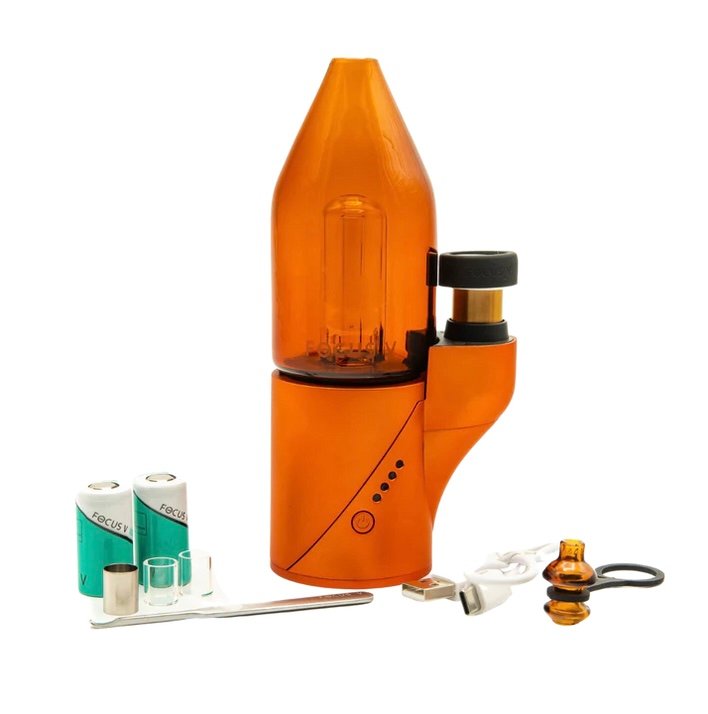

Includes:

• 1 x Focus V Helios CARTA Portable E-Rig

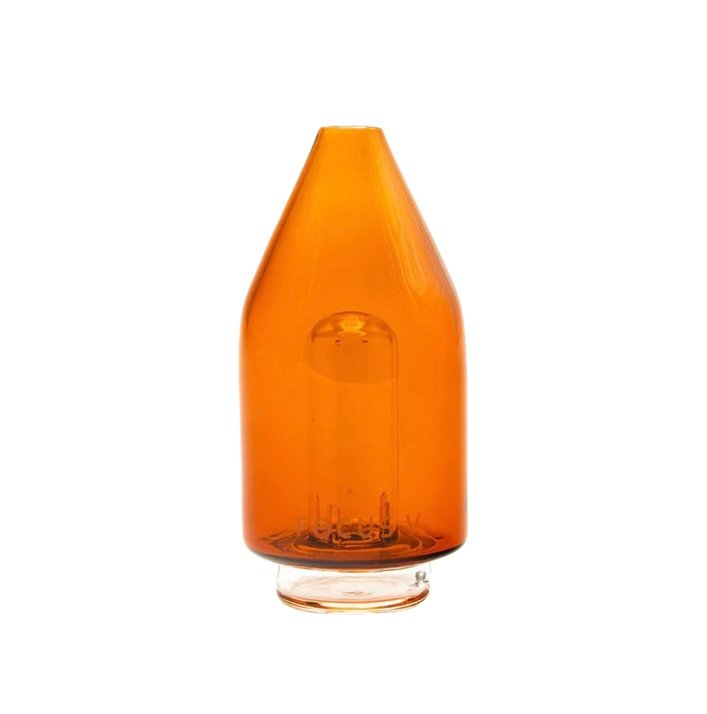

• 1 x Helios Carta Glass Top
• 1 x Helios Glass Bubble Cap
• 1 x CARTA Carb Cap Tether
• 1 x Everlast Atomizer
• 2 x Titanium Bucket
• 2 x Quartz Buckets
• 1 x USB-C Charging Cable
• 2 x 18350 Batteries
• 1 x Silicone Wax Container
• 1 x Dab Tool
• 1 x Pack of Alcohol Cleaning Wipes

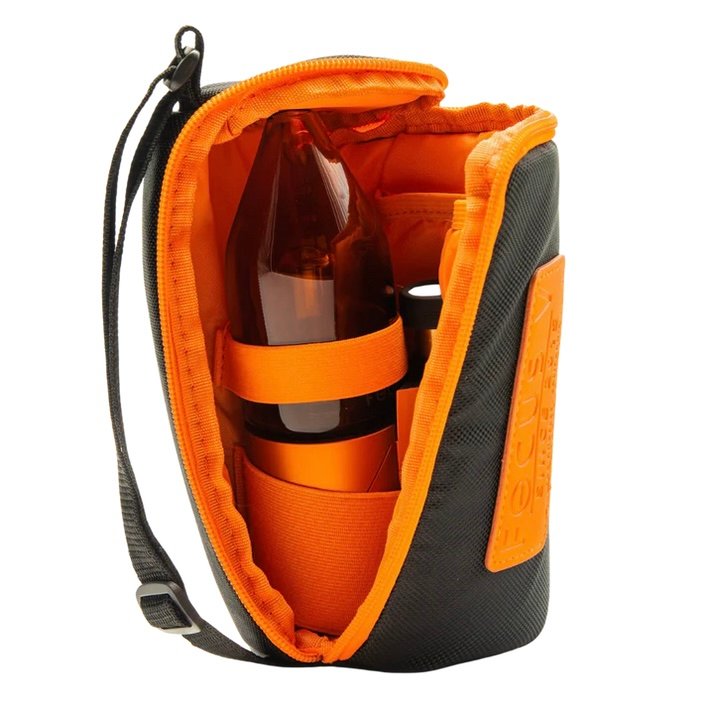

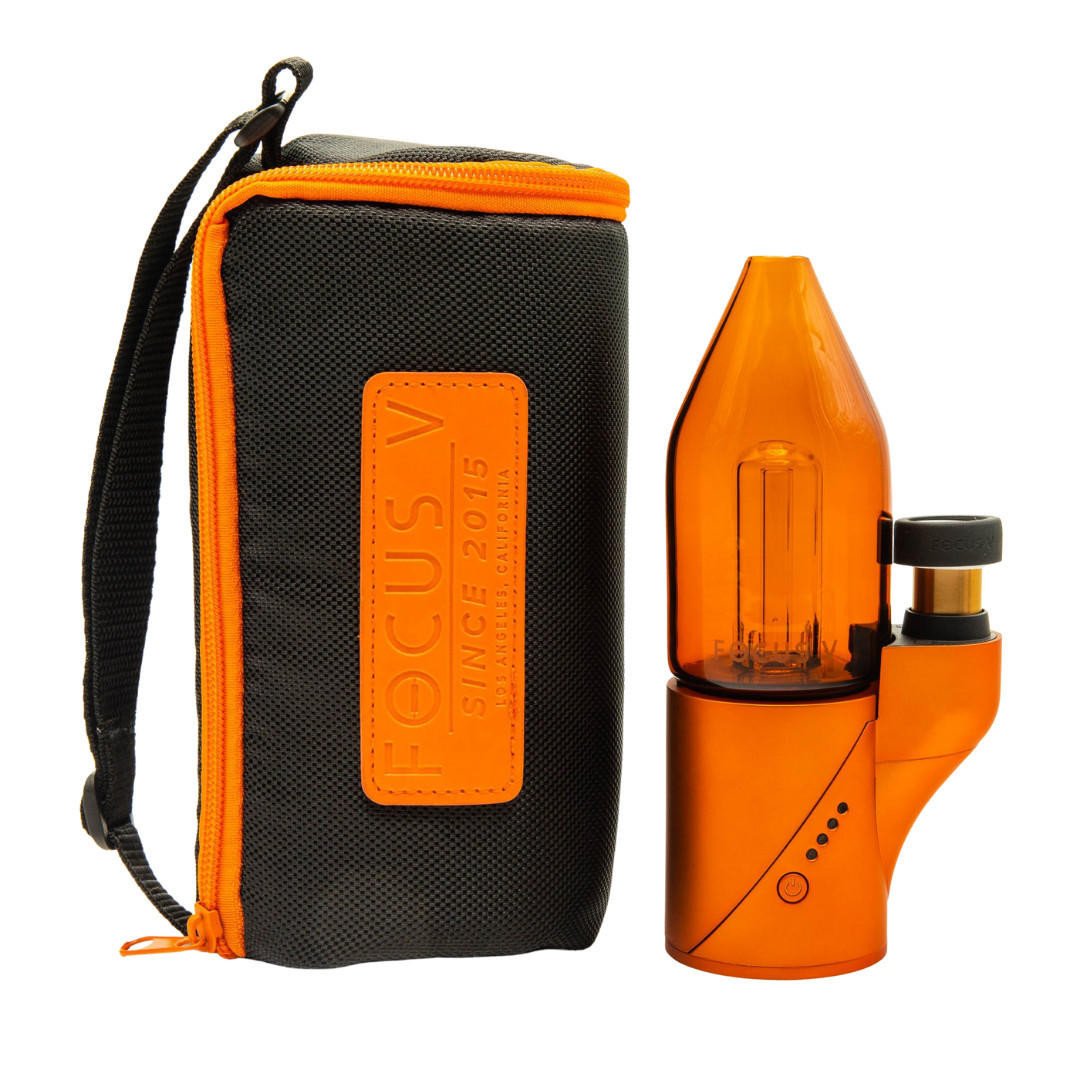

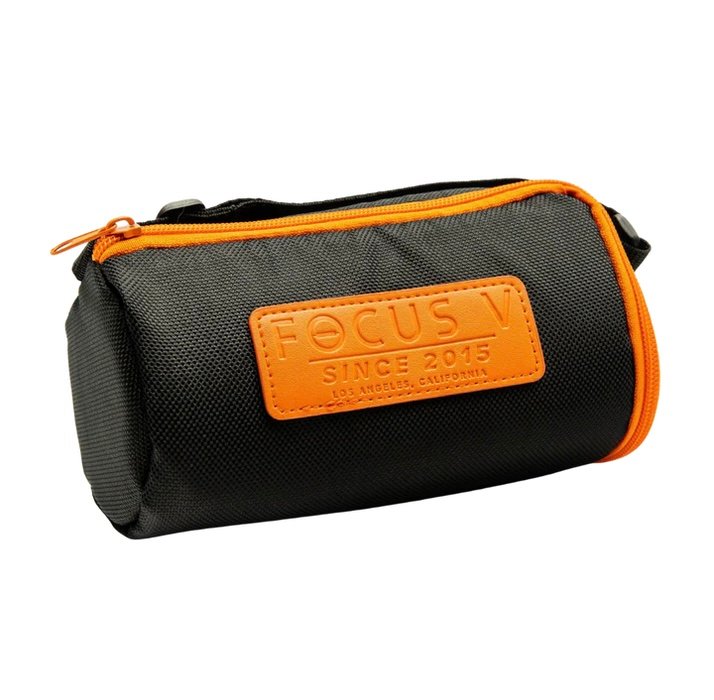

• 1 x Portable Carrying Case

Unit Temperatures:

• 1=500 F
• 2=630 F
• 3=770 F
• 4=842 F

How Do I Use My Focus V Carta OG?

• When you first get your CARTA electric dab rig remove the tabs within the battery compartment and connect the base to the included charging cable, the steady blinking of white LED lights should illuminate indicating the Carta is charging. Make sure it reaches a full charge before use, do not exceed 2 hours of charging time. Once the LED lights hold a solid illumination, the CARTA is fully charged.

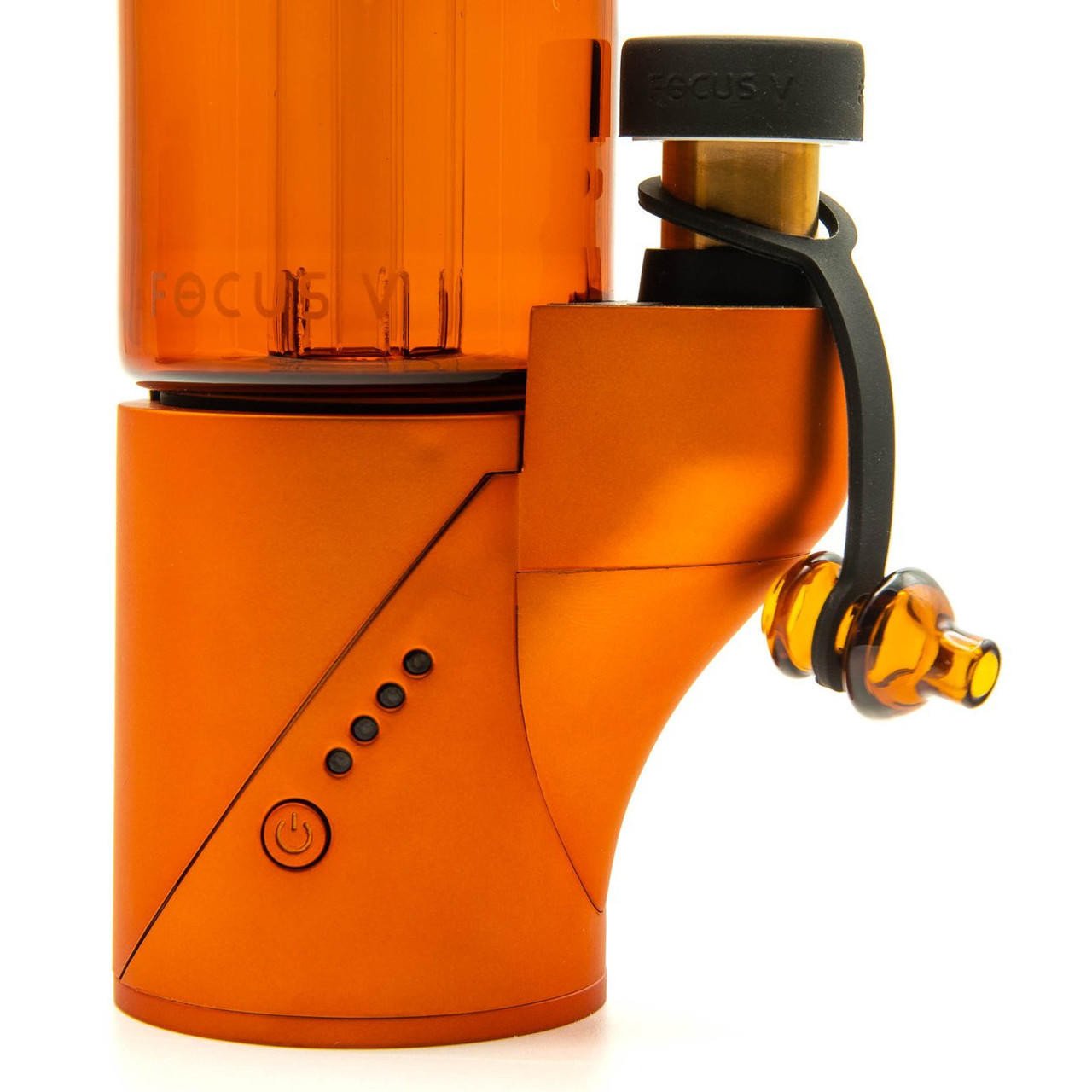

• Power on your CARTA by pressing the power button 5 times rapidly, you’ll be greeted by all 4 LED lights illuminating white and blinking 3 times.
• After the device is turned on, click the power button one time to select your temperature setting, the Carta will begin to heat automatically, and the LEDs will blink blue repeatedly upon heat up.
  • • One Blue Light = 500 Degrees
    • Two Blue Lights = 630 Degrees
    • Three Blue Lights = 770 Degrees
    • Four Blue Lights = 840 Degrees
• Once the Carta reaches your selected temperature the LEDs will stop blinking blue and instead will hold a solid green light.
• When the lights illuminate green, use a loading tool to drop in your concentrates, place the concentrates at the bottom of the insert avoiding the walls.
• Place the included carb cap on top and inhale slowly.
• Once the LED lights blink white 8 times, this indicates that the battery is low, and the Carta needs to charge.
• To check on the battery life click the power button 3 times while the Carta is in use. The number of solid red lights that illuminate will show the status of your battery:
  • • 1 Solid Red Light: 25% power
    • 2 Solid Red Lights: 50% power
    • 3 Solid Red Lights: 75% power
    • 4 Solid Red Lights: 100% power

Why Is My Focus V Carta OG Flashing Lights?

The LED light colors, and frequency of blinking are also how your CARTA clues you into potential problems and helps you troubleshoot. If you’ve ever wondered “What does that flashing light mean?”, you’ll find your answer below, ordered by the number of blinks.

White Flashing Lights – 8 Times

When your white LED lights flash 8 times, it can signal a variety of potential issues with your portable dab rig though most are easy to fix.

• The most common issues communicated by 8 flashing white LEDs is a dead battery. Check the battery life by clicking the power button 3 times while the e-rig is active.
• Sometimes 8 blinking lights may require you to reset your device by switching the polarity of the batteries. Simply flip your batteries in the reverse direction, close the battery compartment and power up your device. After the Carta is powered up, you can return your batteries to their original position.

If the above steps do not resolve the issue, try the following steps:

• If the white LEDs continue to blink 8 times, your atomizer may be unseated. Your atomizer’s firing pin must be aligned for the Carta to work properly; the slightest crookedness can trigger this issue.
• If you notice that your atomizer isn’t connected properly, unscrew the atomizer fully and screw in the atomizer to the base again, be sure the threading is not off.
• Make sure that the atomizer is tightened, but not too tight.

Sometimes, the 8 blinking white LEDs can simply indicate that there is excess wax buildup clogging the contact points where the atomizer meets the CARTA base.

• Please clean the Carta connection points with cotton swabs and 91% isopropyl alcohol.
• Make sure to pay special attention to any potential wax gumming up the threading.

Finally, the last issue linked to 8 blinking white LED lights is the most severe.

• This means the heat plate is broken or the threads that have been stripped bare. Unfortunately, this problem requires replacement of parts.
• Refrain from using excessive force when installing the atomizer and allow 30 seconds to cool after use to avoid this issue.

Red Flashing Lights – 8 Times:

If the Carta is blinking red 8 times, this is a clear indicator that your battery levels are low.

• Often, this can simply be fixed by charging your batteries. If you notice that a charge is still not being held after up to 3 hours of charging time, you will probably need to completely replace the batteries.

Red Flashing Lights – 7 Times:

If you see the red LEDs flash 7 times: your atomizer has an initialization problem. This will require you to restore the atomizer, achieved through a simple 3-step process:

• Make sure that both the room temperature and atomizer temperature are set to 77°F.
• Reattach your atomizer to the base of your CARTA.
• Quickly (within 2 seconds’ time) and continuously press the power button 3 times, then hold the main button for 3 seconds.

It may seem challenging to get both your atomizer and the room temperature to a precise 77°F, but it’s important to get this temperature as close as possible to match the initial factory calibration. You’ll know it worked if your white LEDs flash 4 times. But if you instead see 4 red LED lights flash, it means that the initialization process has failed, and you will need to try again.

Yellow Flashing Lights – 5 Times:

If the LED light blinks yellow 5 this usually indicates circuit protection warning.

• Please thoroughly cleaning the threads of your CARTA base with 91% isopropyl alcohol.
• If your threads are squeaky clean and the Carta is still flashing yellow 5 times, you should carefully inspect your heating element for damage.

Red Flashing Lights – 4 Times:

• See the above section “When Your Red LED Lights Flash 7 Times.”

Orange Flashing Lights – 3 Times:

If the LED’s flash orange 3 times this may mean the battery terminals need to be cleaned.

• The dirty battery terminals could indicate the corrosive presence of battery acid. You should be able to clean this up as you would any battery terminal, but make sure to use extra caution when cleaning corrosive battery acid.

Yellow Flashing Lights – 3 Times:

If you catch 3 blinks of the yellow LEDs, it’s a clear indicator that your e-rig is entering safe mode.

• Make sure to let your atomizer cool for a solid 30 minutes.
• You should also clean your atomizer ports and points of connection.

Yellow Flashing Lights – 2 Times:

If the LED lights flash yellow twice this may mean that your atomizer is overheating.

• Turn off your Carta and let your atomizer cool down. Once it has sufficiently cooled, run the reinitializing steps detailed in the above section “When Your Red LED Lights Flash 7 Times.”

Yellow and Red Flashing Lights – 1 Time:

If you see all 4 of your LEDs illuminate once, 2 yellow LEDs and 2 red LEDs this means the batteries are installed incorrectly.

• Flip your batteries and reinsert them.

If you are running into an issue in which your Focus V CARTA is blinking LEDs that don’t match any of the above descriptions, please take a video of the blinking lights in action and contact our support team: info@magicvaporizers44australia.com.
